- General Details

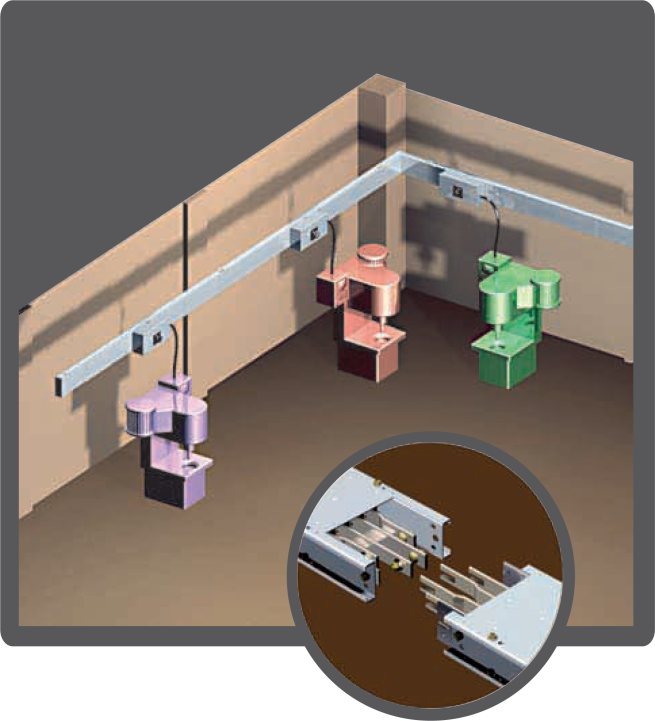

DAVIS Compact Busway system is a low ampere air insulated with epoxy insulation busway designed to distribute electrical energy. This is a very economical busway design for efficient energy distribution in a wide area especially in textile mills, small medium industries, assembly lines, shopping malls and commercial buildings.
DAVIS compact busways are available from 100A to 800A rated at 690VAC in a polyphase system.
|IEC 60439-1:2004, IEC 60439-2:2005, IEC 60947-2:2003, IEC 60331 & BS 6387 & IEC 60529:2001|
|System voltages||1000VAC at 50Hz or 60Hz frequency|
|Busbar Conductor||Copper 99.98% (Composition) >98% IACS (Conductivity) Aluminium 99.98% (Composition) >61% IACS (Conductivity)|
|Current rating||100A – 800A for copper conductor
200A – 630A for aluminum conductor
|Type of insulation||Air with epoxy insulation.|
|Busway housing||Galvanised Steel, Extruded Aluminium and Stainless Steel|
|Housing finishing||Epoxy polyester powder coated|
|Ingress of protection||Indoor Installation IP42/43/44/55 & Outdoor Installation IP65/66/67|
