Cable Management System – Accessories

General Details

Underfloor Trunking System

Underfloor Trunking is designed for the distribution of power, voice and data services in floor where the trunking is buried in the screed. This system provides the simplest and most economical method of carrying services to feed a grid of outlet installation and can be used to integrate with
the perimeter or a surface trunking system.

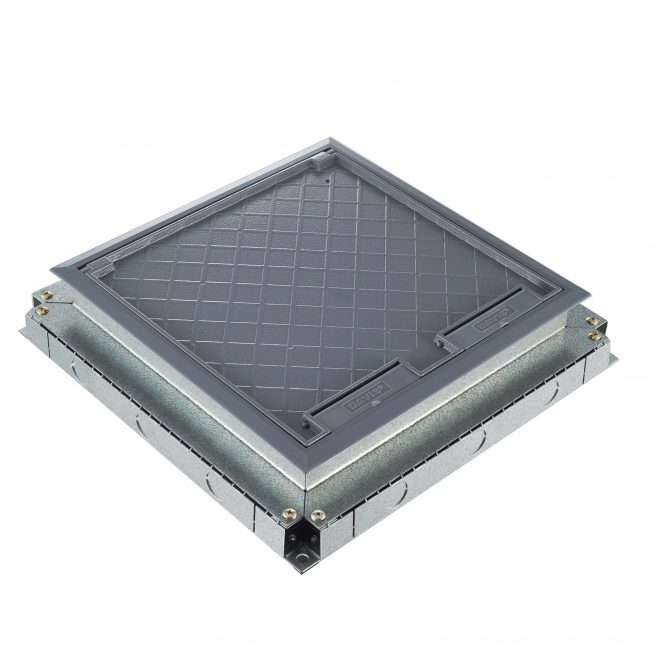

Floor Boxes for Underfloor Trunking System

Davis Service Boxes, commonly known as Floor boxes, are metal electrical outlet boxes providing outlets from conduits in or under the floor. The floor boxes consist of three main components:

  • A Basic Box
  • A service Trap and Frame
  • An Epoxy-coated service outlet panel suitable for power, voice & data
Specifications & Dimensions

Model: TF470/3/25 ››

• Dimension: 270 x 230 x 25mm
• 3 Compartment Tile Finish
• 2 Single & 2 Twin Outlets


Model: TF470/3/80 ››

• Dimension: 270 x 230 x 80mm
• 3 Compartment Tile Finish
• 2 Twin & 2 Single Outlets
